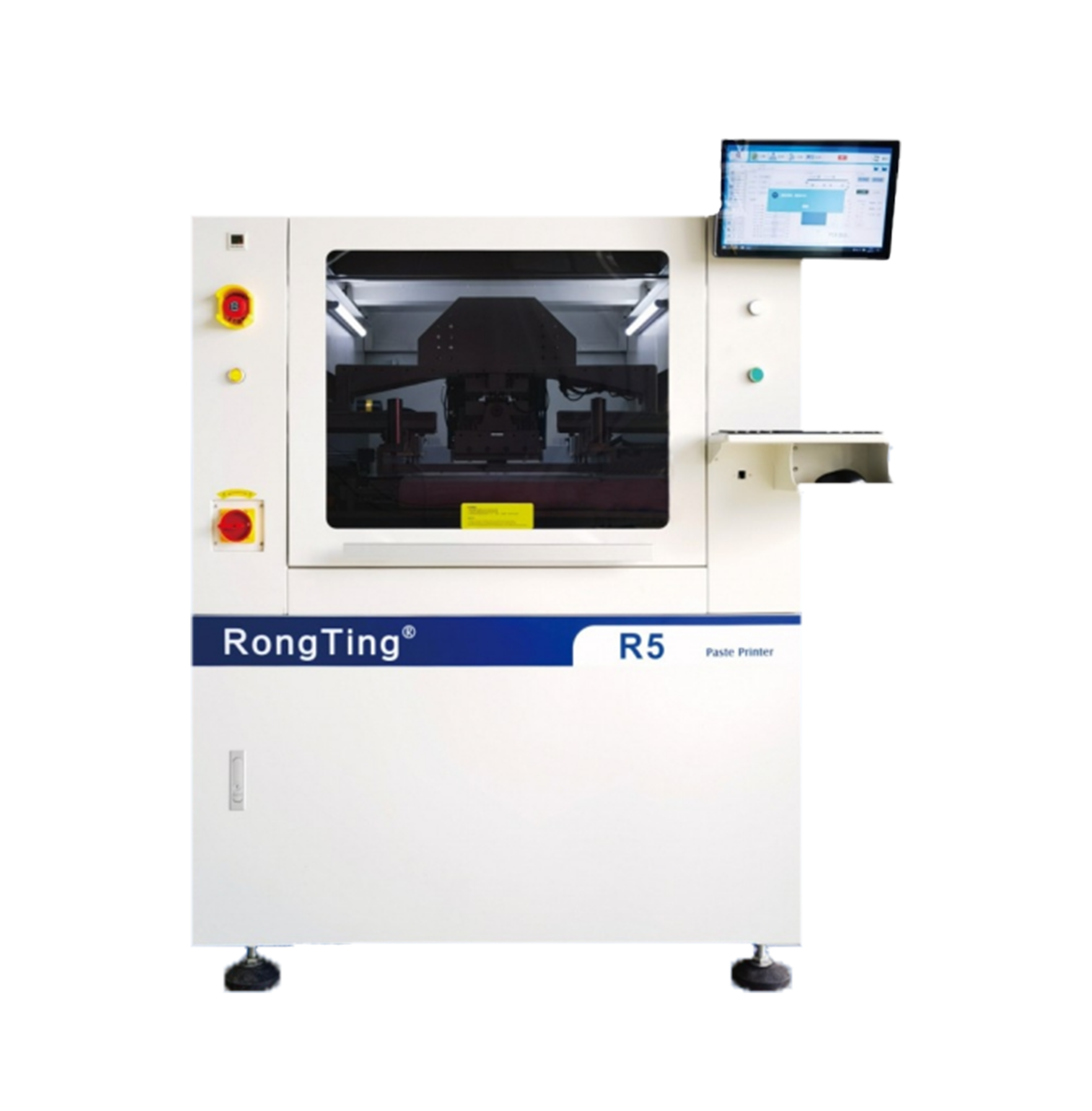

SMT全自動錫膏印刷機 R5
- 產品介紹
- 型號參數
- SMT解決方案
鋼網定位系統
Stencil Positioning System
人性化設計的鋼網定位系統，大小鋼網通用,具有良好而廣泛的實用性。
自動鋼網定位系統，節省換線時間，提升整體效率。
Humanized steel mesh positioning system,it is applicable for stencils of various size.Automatic stencil positioning system saves the line changeover time and enhances the overall efficiency.
清洗系統
Cleaning System
前置的鋼網清潔系統具備干洗，濕洗，真空洗三種方式可自由組合，也可以人工清洗鋼網。CCD部分和清洗部分分離設計，當CCD工作時，CCD獨立移動，降低同服馬達的負載和運動沖量，提高精度及速度和使用壽命。軟件功能可以控制酒精與鋼網紙的用量，有效節省更多耗材;真空清洗匹配專用風機，強力有效。
The Installed on the front stencil cleaning system have 3 options: Dry cleaning, Wet cleaning and Vacuum cleaning can be selected to use,both individually and multiply.And you can also choose to clean manually. The unit to clean is separated from CCD camera,which can minimize the load of motor and impulse,improve the positioning precision and speed and extend the service life.The software function can control the dosage of alcohol and stencil cleaning paper,Effectively save more consumables.Vacuum cleaning is supported with a dedicated fan,powerful and effective.
精確的光學定位系統
Accurate optical positioning System
采取均勻的環形和高亮度的同軸光，先進的上下視覺匹配系統。可調節亮度功能，可識別各類型的Mark點，焊點，鍍錫，鍍銅，鍍金，噴錫，FPC等各種顏色不同的PCB.
Uniform ring light,high brightness coaxial light and advanced upper/lower vision system Full range of light compensation,Automatic and accurate recognized of all type MARK points.Applicable for tin plating ,copper plating,gold plating,tin spraying,FPC and other types PCB.
專用平臺校正系統
Special Platform Calibration System
U，V，W三軸聯動具有超高的動態特性，結構經典可靠，可快速實現PCB板的偏移調節，
U，V，W three axes linkage is designed with super-high dynamic characteristics and with classic and reliable structure，it can quickly adjust the offset of pcb。
操作系統
Operation software
采用Windows win7簡單易學易用的操作界面。具有良好的人機對話功能，做程序文件具有教學及導航功能，每步都有提示方便所有操作人員快速熟悉，菜單中英文一鍵切換。具有操作日志，故障記錄分析診斷等功能。
Using Windows win7 operation interface,and easy to leran for user,with good man-machine interactive function.Programing is designed with teaching and navigation function,guidance is available on every step.Chinese/English selectable Operating Joumal/Breakdown Record/Breakdown Diagnosis.
PCB運輸及定位系統
PCB Transport & Clamping System
采取獨特的皮帶傳動系統,有效防止卡板掉板。可編程馬達控制運輸速度,停板位置精準。左右進出板方向可自由選擇。
采取柔性側夾及真空吸腔,有效夾緊PCB保證PCB各鋼網之間完全平整接觸。
Unique belt transmission system avoids being stuck or fall-off of PCB.Programmable motor controls transport speed and puts PCB in the precise position.Free to choose left of right as the PCB input/output direction.Flexible side clamp and PCB support vacuum block hold PCB tightly and ensure the full even contact between PCB and stencil.
- 產品介紹
鋼網定位系統
Stencil Positioning System
人性化設計的鋼網定位系統，大小鋼網通用,具有良好而廣泛的實用性。
自動鋼網定位系統，節省換線時間，提升整體效率。
Humanized steel mesh positioning system,it is applicable for stencils of various size.Automatic stencil positioning system saves the line changeover time and enhances the overall efficiency.
清洗系統
Cleaning System
前置的鋼網清潔系統具備干洗，濕洗，真空洗三種方式可自由組合，也可以人工清洗鋼網。CCD部分和清洗部分分離設計，當CCD工作時，CCD獨立移動，降低同服馬達的負載和運動沖量，提高精度及速度和使用壽命。軟件功能可以控制酒精與鋼網紙的用量，有效節省更多耗材;真空清洗匹配專用風機，強力有效。
The Installed on the front stencil cleaning system have 3 options: Dry cleaning, Wet cleaning and Vacuum cleaning can be selected to use,both individually and multiply.And you can also choose to clean manually. The unit to clean is separated from CCD camera,which can minimize the load of motor and impulse,improve the positioning precision and speed and extend the service life.The software function can control the dosage of alcohol and stencil cleaning paper,Effectively save more consumables.Vacuum cleaning is supported with a dedicated fan,powerful and effective.
精確的光學定位系統
Accurate optical positioning System
采取均勻的環形和高亮度的同軸光，先進的上下視覺匹配系統。可調節亮度功能，可識別各類型的Mark點，焊點，鍍錫，鍍銅，鍍金，噴錫，FPC等各種顏色不同的PCB.
Uniform ring light,high brightness coaxial light and advanced upper/lower vision system Full range of light compensation,Automatic and accurate recognized of all type MARK points.Applicable for tin plating ,copper plating,gold plating,tin spraying,FPC and other types PCB.
專用平臺校正系統
Special Platform Calibration System
U，V，W三軸聯動具有超高的動態特性，結構經典可靠，可快速實現PCB板的偏移調節，
U，V，W three axes linkage is designed with super-high dynamic characteristics and with classic and reliable structure，it can quickly adjust the offset of pcb。
操作系統
Operation software
采用Windows win7簡單易學易用的操作界面。具有良好的人機對話功能，做程序文件具有教學及導航功能，每步都有提示方便所有操作人員快速熟悉，菜單中英文一鍵切換。具有操作日志，故障記錄分析診斷等功能。
Using Windows win7 operation interface,and easy to leran for user,with good man-machine interactive function.Programing is designed with teaching and navigation function,guidance is available on every step.Chinese/English selectable Operating Joumal/Breakdown Record/Breakdown Diagnosis.
PCB運輸及定位系統
PCB Transport & Clamping System
采取獨特的皮帶傳動系統,有效防止卡板掉板。可編程馬達控制運輸速度,停板位置精準。左右進出板方向可自由選擇。
采取柔性側夾及真空吸腔,有效夾緊PCB保證PCB各鋼網之間完全平整接觸。
Unique belt transmission system avoids being stuck or fall-off of PCB.Programmable motor controls transport speed and puts PCB in the precise position.Free to choose left of right as the PCB input/output direction.Flexible side clamp and PCB support vacuum block hold PCB tightly and ensure the full even contact between PCB and stencil.
- 型號參數
型號 Model
R5
網框尺寸Frame size
MIN SIZE
370*370mm
MAX SIZE
737*737mm
THICKNESS
15-35mm
最小PCB板尺寸Min PCB size
50*50mm
最大PCB板尺寸Max PCB size
400*350mm
PCB板厚度尺寸PCB Board thickness
0.4-9mm
翹曲量PCB Warpage
<1%
傳送高度Transport Height
900 ± 40mm
傳輸方向Transmission direction
左-右,右-左,左-左,右-右Left-Right,Right-Left,Left-Left,Right-Right
運輸速度Transport speed
Max 1500mm's Prammable
PCB定位PCB Location
支撐方法Support System
磁性頂針/可調節頂升平臺/等高塊Magnetic Pin/Up-down table adjusted/Support block by hand
夾緊方式Clamping System
邊夾Side clamping
印刷頭Print Head
兩個獨立的直聯式馬達驅動印刷頭Two independent motorised printheads
刮刀速度Squeegee Speed
6-200mm/sec
刮刀壓力Squeegee Pressure
0~15Kg馬達控制
刮刀角度Squeegee Angle
60° /55° /45°
刮刀類型Squeegee Type
鋼刮刀標準，膠刮刀Stair less steel(Standard),plastic
鋼網分離速度Stenail Separation Speed
0.1-20mm/sec 可調 Programmable
清洗方式Clean System
干/濕/抽真空Dry,wet Vacuum(Programmable)
視野區域CCD FOV
7 x 7mm
錫膏檢測Solder Paste inspection
2D檢測 2D Inspection（選配）
機器平臺調整范圍 Adjustment
X=±3mm，Y=±7mm，θ=±2°
整機參數 Machine
重復定位精度Repeat Position Accuracy
±10um
印刷精度Printing Accuracy
±25um
印刷周期Cycle Time
<7s(Exclude Printing & Cleaning)
換線時間Product Changeover
<5Min
使用空氣Air Required
4.5-6Kg/cm2
電源Power input
AC:220+10%,50/60HZ 1Ф 2.5KW
控制方法Control Method
PC Control
機器外形尺寸Machine Dimensions
1190(L)*1370(W)*1500(H)mm
機器重量Machine Weight
Approx:約820Kg
- SMT解決方案
本產品可以搭配各種全自動的SMT產線。
詳細可以聯系我們，給您提供專業的SMT搭配方案。
